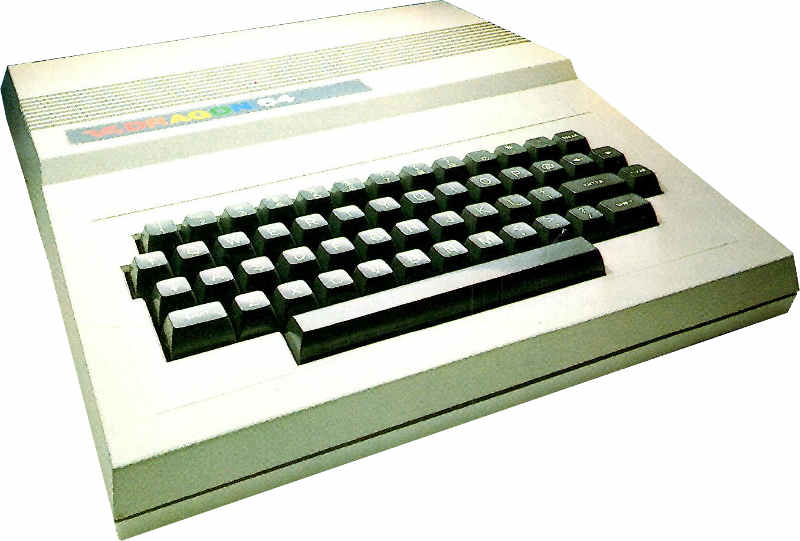

Dragon 64

In late 1983 Dragon Data released an upgraded version of the Dragon 32, the Dragon 64. The machine was basically the same as its predecessor, but with more memory (64k) and the addition of an RS232 serial port. The cost of the machine was 299.

Title image
Manufacturer Dragon Data
Processor 6809E
Speed (MHz) 1
RAM (KB) 64
RAM expandable to (KB) (unknown)
ROM (KB) 16
Sound 1 channel
Keyboard type Typewriter-style
Number of keys 53
Dimensions (mm) 380x325x97
Weight (g) 2100
Interfaces
  • 8-bit parallel port
  • expansion port
  • cassette interface (5 pin DIN)
  • 2 analogue joystick ports (5 pin DIN)
  • Composite video output (5 pin DIN)
  • RF interface
